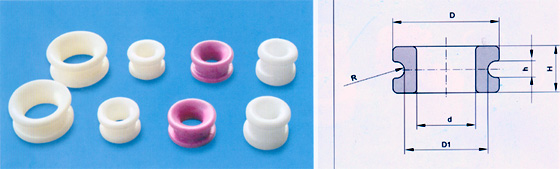

 Textile Ceramics>>>Eyeelets>>>2-collar
ID Parameter
D D1 D2 d H h h1 h2 L R α σ
SC-0601 3.5 1.7 - 1.2 2.8 0.8 - - - - - -
SC-0602 7.5 6 - 4 6.5 3.2 - - - - - -
SC-0603 8 6.5 - 3 5 2 - - - - - -
SC-0604 8 6.5 - 4 5 2 - - - - - -
SC-0605 8.1 7 - 4 3.8 1.6 - - - - - -
SC-0606 8.5 7 - 4.2 7 3 - - - - - -
SC-0607 8.5 7 - 4.2 7 4 - - - - - -
SC-0608 9 7 - 4.2 4.8 2.5 - - - - - -
SC-0609 9.5 6.8 - 4.4 8.5 4.5 - - - - - -
SC-0610 9.5 7 - 4.4 8.5 4.5 - - - - - -
SC-0611 11 9 - 7 10 6 - - - - - -
SC-0612 13 10.5 - 7 6 2.5 - - - - - -
SC-0613 13.3 12.3 - 8.5 10 6 - - - - - -
SC-0614 18.2 12 - 7.2 9 3.5 - - - - - -
SC-0615 20 16 - 10 10 4.3 - - - - - -
SC-0616 6.5 4.5 - 2.5 4 - - - - R1 - -
SC-0617 8 6 - 4 3.3 - - - - R0.5 - -
SC-0618 8 6 - 4 3.6 - - - - R0.9 - -
SC-0619 9 7.2 - 3.2 5.5 - - - - R1.5 - -
SC-0620 12 9 - 6 6 - - - - R0.7 - -

ListNum 28   1/2   First Next  Last
