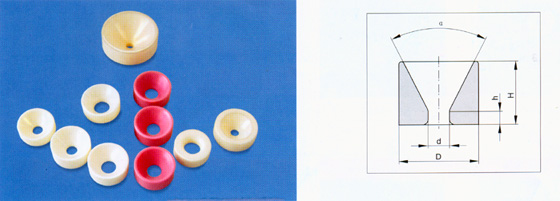

 Textile Ceramics>>>Eyeelets>>>Funnel-Shape
ID Parameter
D D1 D2 d H h h1 h2 L R α σ
SC-0801 11 - - 4.5 4.6 - - - - - 120 -
SC-0802 13 - - 4.5 6 - - - - - 80 -
SC-0803 13 - - 5.5 6 - - - - - 80 -
SC-0804 12.7 - - 3.2 5 1 - - - - 90 -
SC-0805 13 - - 5.5 6 3 - - - - 80 -
SC-0806 9.25 - - 3 9 6 - - - - 80 -
SC-0807 13.5 - - 3 6.05 1.5 - - - - 85 -
SC-0808 13 - - 3.5 6 2 - - - - 80 -
SC-0809 13 - - 5.5 6 - - - - - 90 -
SC-0810 12.7 - - 3 5 1.7 - - - - 96 -
SC-0811 13 - - 5.5 6 3 - - - - 90 -
SC-0812 13 - - 7 6 3 - - - - 80 -
SC-0813 13 - - 3 7 0.8 - - - - 74 -
SC-0814 10 - - 5 5 2.5 - - - - 90 -
SC-0815 5 - - 0.4 5 0.7 - - - - 60 -
SC-0816 7 - - 0.4 2.5 0.35 - - - - 120 -
SC-0817 20 - - 12 4 1.1 - - - - 60 -

ListNum 17   1/1   First  Last
