  Eyeelets Search>>>Input the parameter

D d h1 R
D1 H h2 α
D2 h L σ

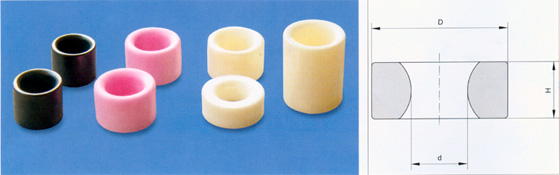

 Textile Ceramics>>>Eyeelets>>>No-collar
ID Parameter
D D1 D2 d H h h1 h2 L R α σ
SC-0701 2 - - 1 11 - - - - - - -
SC-0702 2.3 - - 1.3 1.4 - - - - - - -
SC-0703 4 - - 1.5 4 - - - - - - -
SC-0704 6 - - 3.5 6 - - - - - - -
SC-0705 7.8 - - 4.5 20 - - - - - - -
SC-0706 8 - - 5 15 - - - - - - -
SC-0707 8 - - 10 3.5 - - - - - - -
SC-0708 8.4 - - 6 4.5 - - - - - - -
SC-0709 10 - - 5 3 - - - - - - -
SC-0710 10 - - 5 5 - - - - - - -
SC-0711 10 - - 5 14 - - - - - - -
SC-0712 10 - - 6 8 - - - - - - -
SC-0713 10 - - 7 8 - - - - - - -
SC-0714 11 - - 6.5 15 - - - - - - -
SC-0715 11 - - 8 15 - - - - - - -
SC-0717 12 - - 7 8 - - - - - - -
SC-0718 13 - - 8 10 - - - - - - -
SC-0719 16 - - 9 6 - - - - - - -
SC-0720 18.5 - - 12 12 - - - - - - -
SC-0721 25 - - 6.5 10 - - - - - - -

ListNum 39   1/2   First Next  Last
