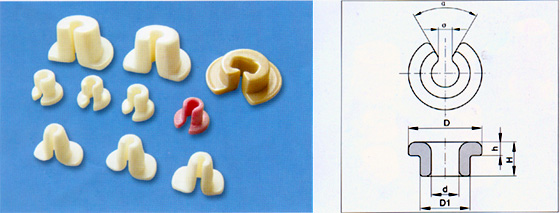

 Textile Ceramics>>>Eyeelets>>>Collar with slit
ID Parameter
D D1 D2 d H h h1 h2 L R α σ
SC-0501 5.2 3 - 1.8 4 1 - - - - 60 0.8
SC-0502 5.3 3.5 - 1.5 4 1 - - - - 60 0.7
SC-0503 5.3 3.5 - 1.8 4 1 - - - - 60 0.75
SC-0504 5.3 3.6 - 2 2.5 1 - - - - 60 1
SC-0505 5.5 4 - 1.5 3.8 1 - - - - 60 1
SC-0506 7 4 - 1 6 1 - - - - 30 0.5
SC-0507 7 5 - 2 7 2 - - - - 0 1.3
SC-0508 10.4 8 - 3.2 5.5 2 - - - - 60 1.4
SC-0509 11 6.8 - 2 7 1 - - - - 0 1
SC-0510 11.5 7.5 - 3.6 9.5 2 - - - - 65 1.8
SC-0511 16 10 - 2 5 2 - - - - - 1
SC-0512 - - - - - - - - - - - -
SC-0513 9.4 7.8 - 3 4.6 1.6 - - - - - 2.4
SC-0514 20 15 - 6 35 5 - - - - - 6
SC-0515 15.9 12.4 - 7.6 7 3 - - - - - 2.3
SC-0516 15.2 12.6 - 7.6 7 3 - - - - - 2.3
SC-0517 8 5 - 1.5 3.2 0.8 - - - - - 1.5
SC-0518 10.7 8 - 5 3 1.1 - - - - - 3
SC-0519 10 7.3 - 4 9 2 - - - - - 1.8
SC-0520 5.2 3.9 - 1.6 4.2 0.8 - - - - - 0.8

ListNum 28   1/2   First Next  Last
