  Eyeelets Search>>>Input the parameter

D d h1 R
D1 H h2 α
D2 h L σ



 Textile Ceramics>>>Eyeelets>>>Standard
ID Parameter
D D1 D2 d H h h1 h2 L R α σ
SC-0241 9 7 - 4 8 2 - - - - - -
SC-0242 9 7 - 4 8.3 1.7 - - - - - -
SC-0244 9.2 7 - 4.5 7 2 - - - - - -
SC-0245 9.5 6.6 - 3 8.3 2 - - - - - -
SC-0246 9.5 7.3 - 4 7.4 2 - - - - - -
SC-0247 - - - - - - - - - - - -
SC-0248 9.9 6.8 - 5 8 1.2 - - - - - -
SC-0249 10 6.8 - 4 10 2 - - - - - -
SC-0250 10 7.5 - 5 3 1 - - - - - -
SC-0251 10 7.5 - 5 5 2 - - - - - -
SC-0252 10 7.5 - 4 8 2 - - - - - -
SC-0253 10 7.5 - 2 8 2 - - - - - -
SC-0254 10 7.5 - 3 8 2 - - - - - -
SC-0255 10 7.5 - 5 8 2 - - - - - -
SC-0256 10 7.5 - 5 30 2 - - - - - -
SC-0257 10 7.6 - 5 4 1 - - - - - -

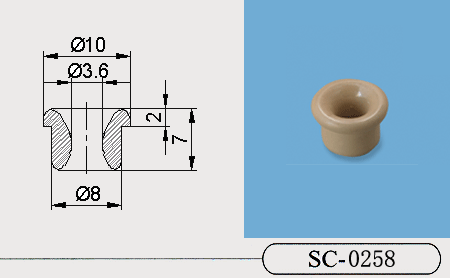

SC-0258 - - - - - - - - - - - -
SC-0259 10 8 - 5 7.6 2 - - - - - -
SC-0260 10 8 - 4.1 8.3 6.4 - - - - - -
SC-0261 10 8.1 - 4.1 8.3 1.9 - - - - - -

ListNum 301   8/16   First Pre Next  Last
