 Textile Ceramics>>>Eyeelets>>>Standard
ID Parameter
D D1 D2 d H h h1 h2 L R α σ
SC-0262 10 8.2 - 5.2 7 2 - - - - - -
SC-0263 10 8.25 - 5 5.5 1.5 - - - - - -
SC-0264 10.2 6 - 3.2 6.6 1.6 - - - - - -
SC-0265 10.2 6 - 4.2 10 2 - - - - - -
SC-0266 10.5 9 - 3.5 10.5 6 - - - - - -
SC-0267 10.6 8.2 - 5.2 8.2 2.3 - - - - - -
SC-0268 10.6 8.6 - 4 20 3 - - - - - -
SC-0269 10.7 6.4 - 3.7 19.5 2.5 - - - - - -
SC-0270 10.8 9.8 - 6.5 6 1 - - - - - -
SC-0271 11 4.9 - 3.8 8 1.5 - - - - - -
SC-0272 11 5 - 3.8 8 1 - - - - - -
SC-0273 11 8 - 6 5 2 - - - - - -
SC-0274 11 9 - 6 5.8 2.5 - - - - - -
SC-0275 11 9 - 6 6.7 2 - - - - - -
SC-0276 11.3 9.9 - 8.5 7 2 - - - - - -
SC-0277 11.5 9.2 - 5.5 8.5 1.5 - - - - - -

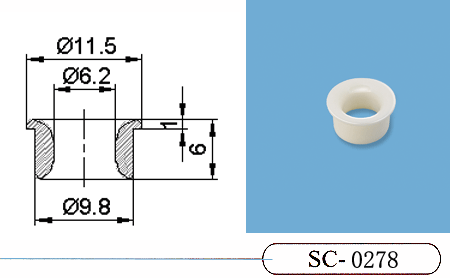

SC-0278 - - - - - - - - - - - -
SC-0279 11.7 9.5 - 5.5 7.9 2.2 - - - - - -
SC-0280 11.8 9.8 - 5 8.4 2 - - - - - -
SC-0281 12 7 - 3.5 5 2 - - - - - -

ListNum 301   9/16   First Pre Next  Last
